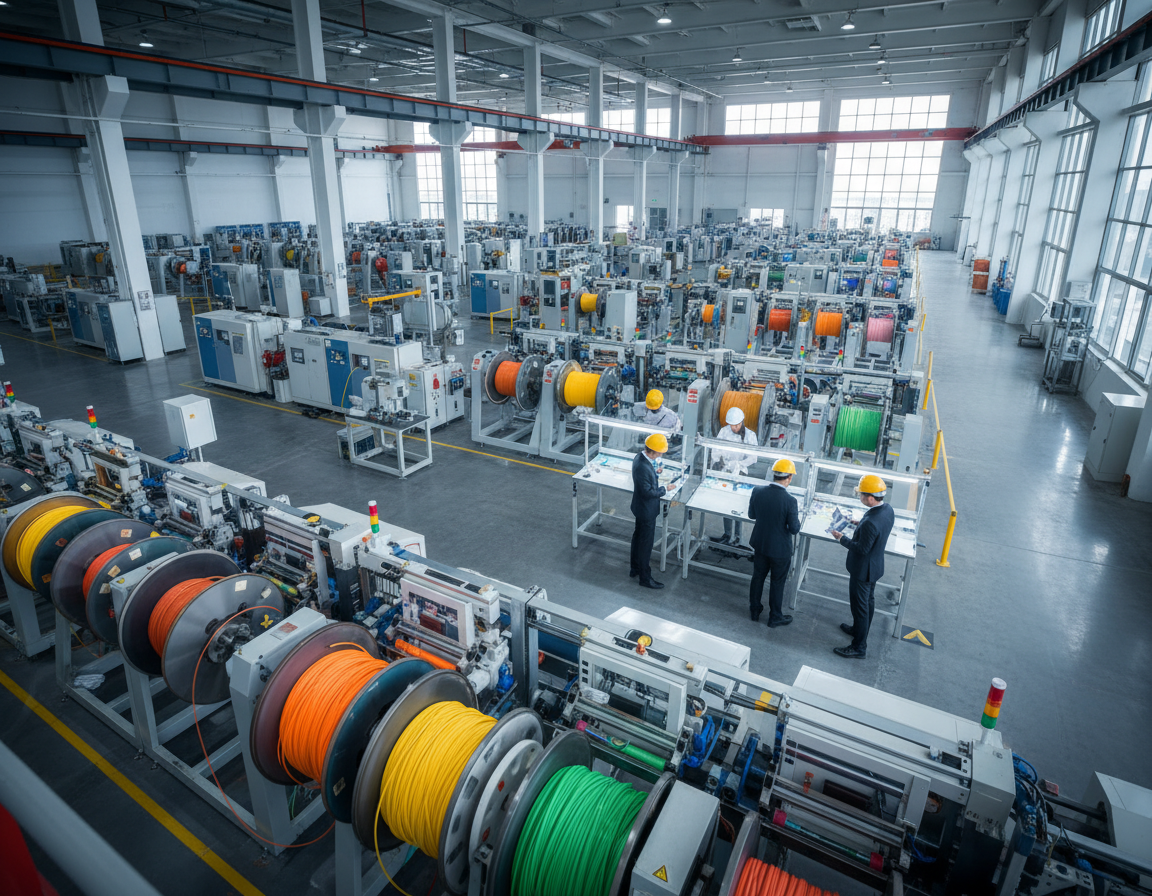

The FTTH Cable Production line is a unified series of modules that transforms glass fiber into ready-to-ship drop and distribution outputs with consistent, repeatable quality.
SZ stranding line
This opening section supports plant managers, process engineers, sourcing teams, and students in the U.S. who assess how industrial production equipment turns fine fiber into durable cables for service and communication networks.
At the heart of the line, the full-chain objective is simple: safeguard the fiber, preserve low optical loss, add strength for installation, and ship an output that withstands inside and outside exposure.
Top-tier equipment delivers reliable tension regulation, coordinated drive systems, consistent process operating windows, and clear documentation for acceptance testing. The article helps match the right line configuration, materials, and testing plan to the target product instead of purchasing machines first and fixing the process later.
You’ll map stages such as fiber handling and preparation, buffering/coating, fiber organization and stranding, strength-member integration, jacketing (outer sheath extrusion), optional armor integration, and final testing and packaging.
Key takeaways: A well-specified line cuts defects and ensures predictable delivery. Align the process before buying machines to avoid wasted time and expense.
How A Fiber Optic Cable Production Line Works Today
Where last-mile drop and distribution requirements meet shop-floor execution.
Modern production lines convert fine glass fiber into finished products used in U.S. broadband rollouts. Last-mile drop cable and ftth drop demand drives high volumes, so manufacturers prioritize repeatable handling methods and standards-based output.
Core Modules & Material Flow
Material progresses through a defined sequence: pay-off (unwinding) → guiding/tensioning → secondary coating/coloring → organization and SZ stranding → strength member delivery → jacketing/sheathing → cooling/curing → take-up plus testing.
Modules → Outcomes
Stable fiber handling lowers attenuation and maintains data and communications integrity. Uniform jacketing supports installation and connector prep. Inline monitors catch loss events before reels exit production.
- Indoor vs. outdoor applications: different buffering and jacket compounds.
- Armored variants add steel tape or wire to improve rodent and crush resistance.
- Drop designs typically use tight-buffered fibers and easier connector preparation.
Buyers should view lines as modular. Plants add armoring or skip steps to fit the product type. Throughput is limited by curing and dimensional control, not only motor speed.
Define Your Product And Data Standards Before You Buy Equipment
Begin with a clear product map that spells out cable type, core count, service environment, and end-use scenarios. This early definition narrows which modules the line must include, from tight-buffering units to SZ stranding and jacket extrusion.
Select Standards And Measurable Targets
Select fiber standards such as ITU-T G.652D single-mode or bend-insensitive G.657 A1/A2 based on required bend performance and route constraints. Document optical loss budgets, tensile strength, crush and bend limits, and environmental durability before vendor selection.
- Identify the precise product type and fiber/core count so you can define modules and control requirements.
- Define attenuation (loss) budgets and mechanical strength targets to guide material selection.
- Define required materials (buffer polymers, jacket compounds) and confirm supplier availability in the U.S.
Data Standards And Traceability, Validation
Translate targets into factory information: captured process variables, lot-level traceability, and test reports customers require for acceptance. Plan R&D pilot runs to validate settings and shorten scale-up time.
Fiber Ribbon Line
| Goal | Factory Implication | Typical Response |
|---|---|---|
| Low loss | Control of tension and alignment | Inline attenuation monitoring |
| Higher tensile strength | Strength-element selection | Integrate aramid or metal |
| Bend-tolerant performance | Selecting the fiber type | Use G.657 variants |
Build Quality Into The Optical Fiber: Core, Cladding & Coating Essentials
Strong optical performance begins in the glass, where core purity and cladding design define the boundaries for loss.
Core + cladding form the central layer structure: an ultra-pure silica core carries the light while lower-index cladding keeps it confined. This geometry is the foundation for low-loss transmission and stable optic behavior in finished cables.
From Preform To Drawn Fiber
Manufacturing begins with preform laydown and consolidation. Moisture removal in a high-temperature furnace reduces defects that increase attenuation.
Drawing pulls the glass into a micron-scale strand. Geometry control at this stage links directly to steady attenuation and predictable transmission performance. A single blank can produce about 5 km of fiber, so process stability saves time and money.
Primary Coating, Color Coding
Primary coating protects against scratches and handling damage; it is not the main tensile element. Color identification simplifies splicing, troubleshooting, and downstream fiber management.
- Preform consolidation: remove contaminants and moisture.
- Draw: control diameter and tension for low loss.
- Coating and color: protect and identify each fiber.
| Layer | Function | Buyer Verification |
|---|---|---|
| Core | Transmit light while minimizing attenuation | Define purity and loss specifications |
| Cladding | Contain light, manage modal behavior | Confirm index profile and geometry |
| Primary coating | Scratch protection; color identification | Check adhesion and color coding |
FTTH Cable Production: Step By Step Line Setup From Buffering To Sheathing
A practical line setup walks each fiber from pay-off through buffering, stranding, and outer jacket to a finished reel.
Secondary coating & fiber coloring stations apply dual-layer UV-cured coatings (≈250 µm) and one-to-twelve-channel color coding for traceability. Consistent UV cure rates and stable web tension reduce mix-ups and rework.
Buffering, Materials
Tight buffering (600–900 µm) protects handling and simplifies connector preparation. Choice of Hytrel, PVC, or LSZH changes flexibility, temp range, and flame/smoke behavior.
SZ Stranding & Organization
SZ stranding uses alternating lay to balance geometry and improve cable flexibility. Servo control (up to 24 fibers) keeps lay pitch consistent and lowers loss risk.
Strength Members And Jacketing
Aramid yarn is a common tensile element; it delivers pull strength without stressing fibers during installation.
Outer jacket extrusion using PVC, PE, or LSZH follows. Speeds often run 60–90 m/min and demand tight OD and concentricity control.
Armoring & Control Points
When crush or rodent resistance is required, add steel tape or wire armor and control tension. Operators track tension, cure state, concentricity, OD, and cooling to maintain quality.
| Stage | Key Control | Typical Spec |
|---|---|---|
| Secondary coating stage | UV curing and tension | ≈250 µm, consistent cure |
| Tight buffer | Choice of material | 600–900 µm (Hytrel/PVC/LSZH) |
| Sheathing/jacketing | Concentricity and OD | Typically 60–90 m/min |
Optimize Production Speed And Process Control With Modern Automation
As factories chase 24/7 output, synchronized controls and tension systems form the backbone of reliable manufacturing.
PLC, HMI, Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC + HMI platforms to synchronize modules, manage recipes, and record process information. Closed-loop tension control safeguards fiber during start/stop events and speed changes.
Fiber Draw Tower
Match Speed To Curing & Dimensional Control
Line speed often tops out when curing, cooling, or extrusion dimensional control can’t keep pace. UV cure completeness, water-trough stability, and chiller capacity define the real limit.
Layout, Changeover & Procurement
Factory layout affects uptime: proper pay-off/take-up placement plus protected fiber paths reduce damage and shorten changeovers.
- Design quick-change tooling and documented setup steps for faster changeover.
- Specify industrial power (380 V AC ±10%) and typical ≤55 kW load when ordering equipment.
- Require remote diagnostics, parts availability, and service response from the equipment company.
| Priority | Operational Value | Typical Goal |
|---|---|---|
| System synchronization | Less scrap, more repeatable runs | Siemens PLC/HMI platform |
| Tension control | Protects fiber; keeps loss stable | High-accuracy closed-loop |
| Layout & changeover | Less downtime | Quick-change tooling, staging |
Testing And Quality Control To Reduce Loss And Improve Delivery Reliability
Strong testing and clear QC turn raw fiber into reliable, field-ready cable reels.
Begin with optical verification. Inline attenuation testing and return loss checks confirm signal performance before reels exit the line.
Optical Checks And Signal Integrity
Attenuation testing is the primary guardrail against performance complaints. Higher loss readings point to handling damage, microbends, or contamination.
Return loss checks focus on reflections that impact sensitive links and tight network margins.
Mechanical, Environmental Validation
- Tensile pull tests confirm strength members and installation safety.
- Crush and bend tests mimic real-world stresses during installation.
- Temperature cycling, moisture soak, and vibration tests de-risk outdoor and aerial routes.
| Validation Test | Objective | Typical Decision |
|---|---|---|
| Attenuation test | Measure loss per km | Pass/fail against specification |
| Mechanical tests | Validate pull, crush, and bend | Installation performance rating |
| Environmental validation | Simulate real field conditions | Durability confirmed |
Traceability ties raw material lots, in-line data, and final test results to reel IDs. Proper reeling, labeling, and protective packaging preserve quality and speed customer acceptance and delivery.
Final Thoughts
A clear manufacturing plan ties product targets to the exact line modules and control limits needed for reliable output. Define the FTTH product, service environment, and measurable specifications before choosing equipment or layout.
Fiber optic fundamentals — core, cladding, and coating — set the optic baseline. Careful handling upstream preserves signal integrity and keeps finished quality within acceptance limits.
Set buffering, organization/stranding, strength members, and jacket selection to match installation conditions. Use automation and closed-loop controls to maintain speed, reduce scrap, and keep delivery predictable in U.S. markets.
Operational discipline matters: implement comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels quickly. Next step: convert these points into a purchasing checklist (spec targets, utilities, layout, and acceptance tests) before you request quotes or trials.
